OAK RLP Brake Lever Blade Set - fits Magura

Name: OAK RLP Brake Lever Blade Set - fits Magura
Brand: OAK Components GmbH
SKU: 02-000-A01-E01
Price: 149.0 EUR
Availability: InStock
Rating: 5.0 (48 reviews)

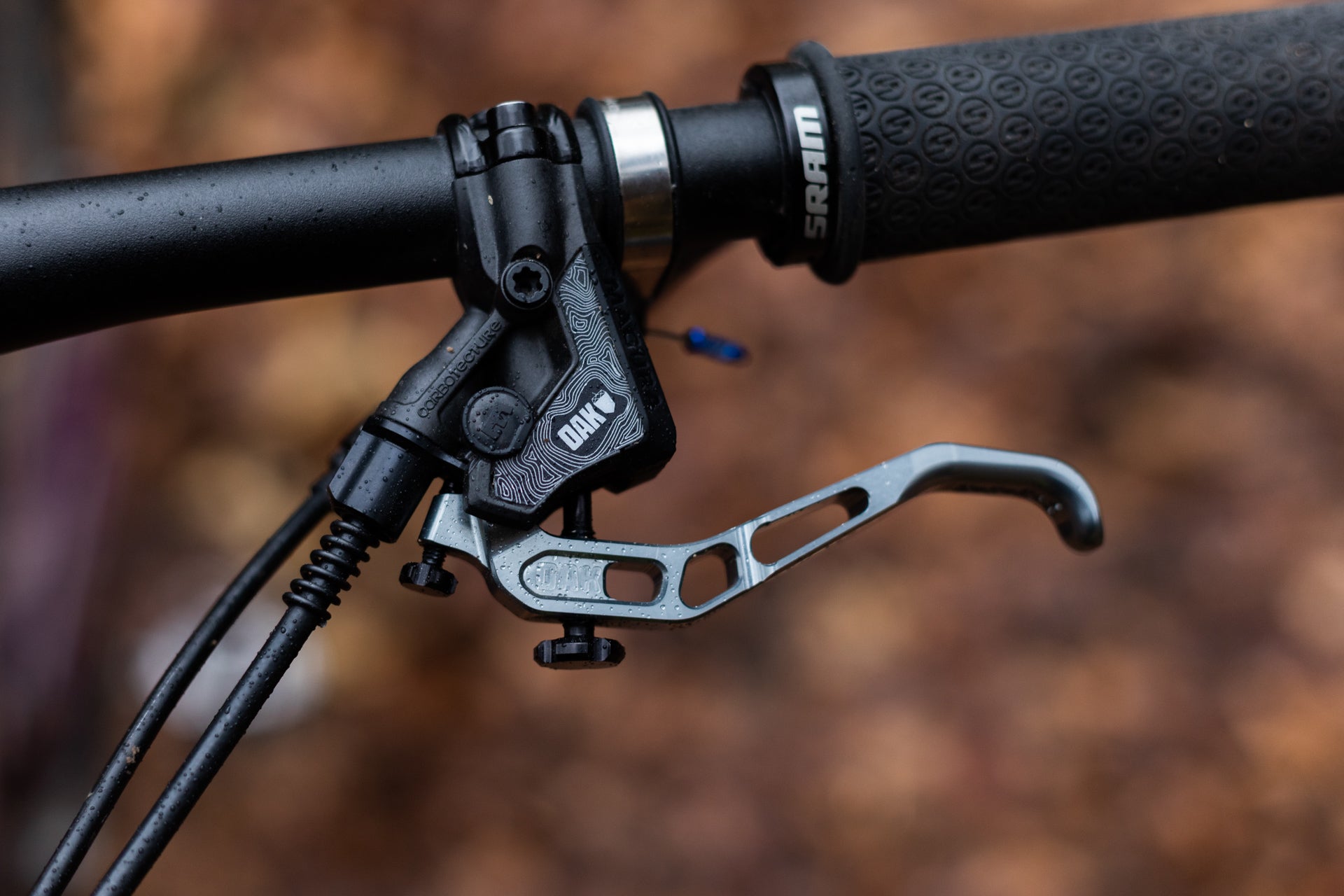

Close-up of OAK mountain bike brake lever with CORBOTECTURE branding and SRAM grip on wet handlebar.

Three metallic HERO levers in silver, grey, and black with adjustment knobs and screws for mountain biking.

Two silver mountain bike levers with black adjustment knobs and mechanical parts.

Technical schematic of ROOT-LEVER PRO showing Magura MT Trail, MT 4 to MT 8 compatibility.

Black textured bicycle handlebar grip with silver brake lever and AK branding for mountain biking.

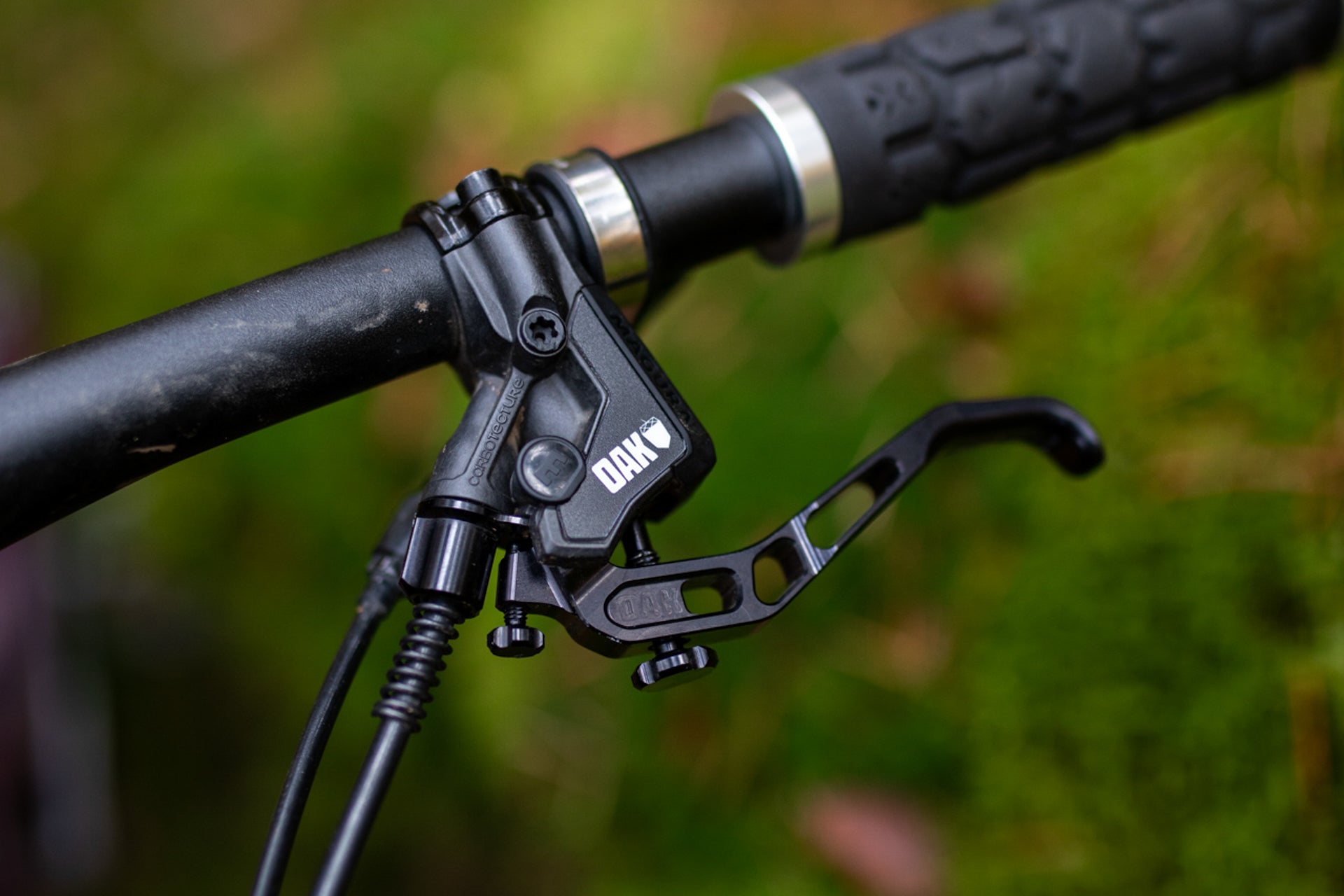

Close-up of OAK branded black bicycle brake lever with ergonomic design on handlebar

Close-up of a black MAGURA brake lever and metallic lever on a scratched black handlebar with a CHROMAG grip, outdoors.

Mountain bike handlebar with SRAM brake levers, purple head tube, in a forest with moss and leaves

OAK RLP Brake Lever Blade Set - fits Magura

OAK's first product in the brake lever area: The "Root-Lever Pro"!

State-of-the-art machined aircraft aluminum for excellent stability

More power & better controllability through adapted geometry

Color

€149,00

Tax included.

MT8 (Raceline, Pro, SL, SL FM)
MT7 (Pro & Raceline)
MT6
MT5; MT5 eStop; does NOT fit MT5e!
MT4
MT Trail (Sport & Carbon)

2x anodised brake levers
2x black anodised bend protection sleeves
2x black anodised CPA adjustment screws
2x black anodised EPA adjustment screws
2x stainless steel springs
2x double spring sleeves
1x OAK sticker pack
1x Allen key (1.5 mm SW)
1x user manual and assembly instructions

CO2-neutral shipping in environmentally friendly packaging.

Root Lever Pro (per lever): 25.4g
Anti-kink protection (per piece): 5.4g
Total set: 61.6g

Advanced Lever Kinematics
Adjusting the lever ratio ensures maximum braking power with first-class controllability and makes a good brake even better. We calculated, compared and tested countless variants until we arrived at the best result.

Contact Point Adjustment (CPA)
The CPA from OAK Components is a mechanism for fine-tuning the pressure point. The manufacture of a special adjustment screw makes it possible: the pressure point can be adjusted in 1/4-millimeter increments using fine locking marks on the thread of the specially designed adjustment screw, providing haptic feedback through a clearly defined click. The adjustment range is significantly larger than with the original Magura levers and makes the brake system more adaptable.

Empty Path Adjustment (EPA)
Using the EPA system from OAK, the brake lever can be adjusted quickly and precisely without tools. This means that there is no need for a return spring, which often causes problems with the brakes of the MT series.
In combination with the CPA system, every imaginable lever position can be achieved and the brake can be adjusted to all personal preferences. Your braking system is more fail-safe than ever before. Always make sure that the brake is correctly adjusted according to the specifications.

Optimization through topology studies and simulation
Topology optimization describes the calculation of a material arrangement in the design space that can withstand a load as well as possible. This means: where the tension in the component is high, there is more material. This process is crucial for the design of our brake levers. This way, the stiffest and most resilient construction is generated from as little material as possible. Using FEM simulations, weak points are then analyzed and optimized, even before the first prototype is produced on the milling machine.
We then verify the result extensively on test benches and trails.

Testing
We test all our components to the highest standards ourselves and in cooperation with independent testing institutes. Our levers are certified according to DIN EN 14766, with tests that go far beyond the norm. Even more important to us is the feedback from our team drivers and customers. Ergonomics, durability, crash behavior: everything is discussed in detail and forms the basis for the next optimization steps. Only those who accept criticism and meticulously eliminate weak points can achieve the best possible result.

Made in Europe
Aerospace Aluminium
100% CNC-milled

» User manual
» Assembly video

Related products

Open box of Oak Components Rear Levers Pro on a topographic insert, with red and blue Park Tool pliers.

Pair of metallic JDD-branded brake or clutch levers with adjustment knobs on a wooden workbench.

The revolutionary brake lever upgrade for your MAGURA brake system

Impresses with durability, adjustability and unique design.

The optimized mechanical transmission makes your brakes more powerful, easier to control and guarantees incredibly precise braking, thus achieving the highest level of precision.

Crash? No problem! If you manage to break the lever, contact us for a crash replacement.

Secure your advantage on the trail now and become part of the OAK revolution.

Smiling young man with muddy face and beard in blue shirt, blurred green forest background.

Matt Beer

Expert opinion

"I've been a fan of Magura brakes for a long time and adding the Root Lever to the system raised their performance even higher.

This niche product is on par for pricing with Magura's highly adjustable HC3 lever, but provides a more traditional lever shape.

With the Contact Pad Adjustment, you can dial in where you want the brakes to engage on the spot without having to overfill the reservoir and keep that crispy feel for a longer period of use."

Instagram: @mattb33r

Mountain biker in a helmet jumping on a rugged forest trail with dirt, rocks, and tall trees.

From bikers for bikers

Team OAK

Our engineers are dedicated mountain bikers themselves, and their OAK developments maximize the fun and performance of every descent. We incorporate product feedback from customers around the world to ensure we offer the best possible parts.

Feel the difference for yourself, ride after ride!

Black clipboard with four checked items and a gear icon, symbolizing organized tasks and settings.

Intensively tested

In addition to laboratory tests, our professional team riders and engineers test all parts in the most demanding areas of riding bikes.

Black handshake icon symbolizing partnership and agreement on a white background

We got your back

Do you need spare parts or further help? Feel free to contact us at any time, we will help you!

Black circular icon with two arrows and bold text '30 DAYS,' indicating a 30-day guarantee.

Without compromises

If you are not satisfied, the product can be returned within 30 days.

Yes, because the bending protection must be installed. We have tested intensively how the brake line can be reliably protected.

Plastic and rubber were quickly out of the running. Only the use of a steel spring could distribute the point load over a sufficient area and protect the line in the long term. This means that spongy pressure points or oil leaks from leaky brake lines are a thing of the past.

The Root-Lever Pro uses the sweet spot of braking power and controllability. We get the maximum performance out of your Magura brake system, but manage to provide even more controllability through an optimized lever ratio.

Due to a very large adjustment range, we can optimally cover all conceivable settings with one lever version. We don't like trying many different parts to find the right version. This wastes time and resources. We stick to one option which is guaranteed to be able to do everything!

Our brake lever is designed to be more stable to withstand even the greatest stresses in tough racing use. Due to the exquisite choice of materials and intelligent construction, it is more durable than all its competitors. Guaranteed!

Furthermore, with the Root-Lever Pro you can cover a very large adjustment range with just one lever.

If the stable Root-Lever Pro is actually damaged in a fall, we ask you to contact our customer support.
Please use our warranty and crash replacement form

We know the problem of loose springs from our own painful experience and have therefore developed a system that does not require a return spring at all.

No spring – no problem!

Gear ratio is about 6.5 : 1

Yes, it is absolutely necessary to install the Bending Production. The function of the Root-Lever Pro is only guaranteed if it is supported on this component.

The CPA adjustment dial is the standout feature of this lever. It allows you to fully synchronize the contact point of the brake application—a true revolution. This also means you can adjust the feel of the lever as the brake pads wear. Several other long-time Magura fans were also surprised by the precision of the Root Lever.

Read now

What is your personal highlight of your bike of the week?
The overall performance of the bike. I really enjoy riding it, and especially with pain-free wrists and forearms again. It's the sum of the parts that makes it all.

Read now

Close-up of a mountain bike brake lever with detailed cutouts and connected cables

Mountain biker in white helmet and sunglasses doing a wheelie on a forest dirt trail with tall trees.

Person in 'TO THE MOON' jersey on a mountain bike with golden suspension forks on a forest trail

Close-up of mountain bike handlebar with silver AK MT7 brake lever and textured black grip.

must've

Ein muss bei jeder neuen magura MT Bremse !

Eine gute Bremse wird nochmals viel besser!

Hält was versprochen wird! Wunderschöner Griff.

Bremshebel

Super Bremshebel.Einfache Montage und sind wirklich klasse.

Perfekt

Perfekter sauber gefräster Bremshebel, einfache Montage. Bringt die Magura MT7 nochmals eine Stufe höher bei der Feinfühligkeit und Dosierbarkeit.
Top Produkt - Made in Europa.
